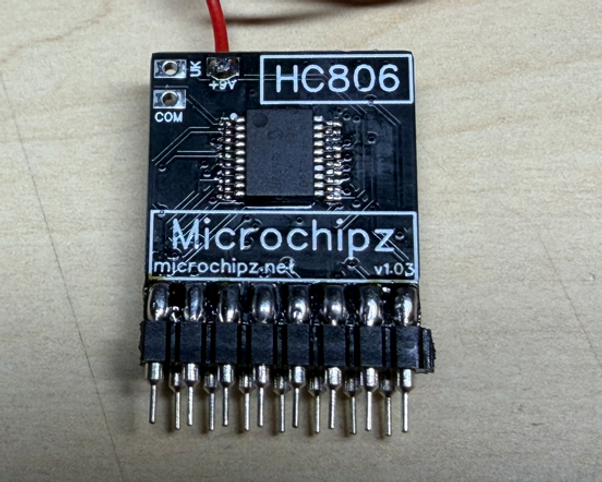

Microchipz HC806

This is designed for the PTBM133A4X board found in the HAM Jumbo 3, Concorde 3, Multimode 3 and others

using the 133 board.

​

This will NOT work in the Viking 3.

​

This board is a direct replacement for the HC806 unit and with the only extra connection of 9v supply will replace a failed HC806.

​

This board will also give UK1-40 readout on HIGH band by connecting the 2 connections.

​

This board will also fix the -40 and -80  channel map back to a standard channel map, this is selectable by soldering a link on the rear of the board.

​

Order code - MCHC806

£35 + £5.20 p+p

​​​​

Microchipz Jumbo PSU

This is a replacement PSU for the HAM Jumbo and similar radios.

​This is a drop in replacement, The bridge rectifier will need

to be bolted to the chassis to keep it nice and cool,

so a small drill will be required.

See my Jumbo 3 video for detailed fitting.

​

All parts have been upgraded so should last a lifetime.

​

Parts included, PSU ,Upgraded regulator ,Bridge Rectifier.

​​

Order code - MCJPSU

£45 + £5.20 p+p

​

​

​

​

Microchipz Jumbo Antenna Relay

This is a replacement relay for the HAM Jumbo and similar radios that use the HA1-9V relay.

​

This is a drop in replacement no other work is required.

​

Order code - MCHA1RELAY

£13 + £5.20 p+p

3 or more £12 each

​​​

​

HAM Jumbo Antenna Relay

This is a replacement relay for the HAM Jumbo and similar radios that use the HA1-9V relay.

Will not fit in a Jumbo 3

without longer pins being fitted.

This is the Ham-international.eu version.

Reproduced in the UK with Steph's blessing, thank you.

​

This is a drop in replacement no other work is required.

​

Order code - MCHIEURELAY

£13 + £5.20 p+p

3 or more £12 each​​​

​
